Model: EB500
Capacity/Volume: 6.5 cu. yd. (5000 litres)
Capacity/Weight: 2600 lbs (1200 kg)

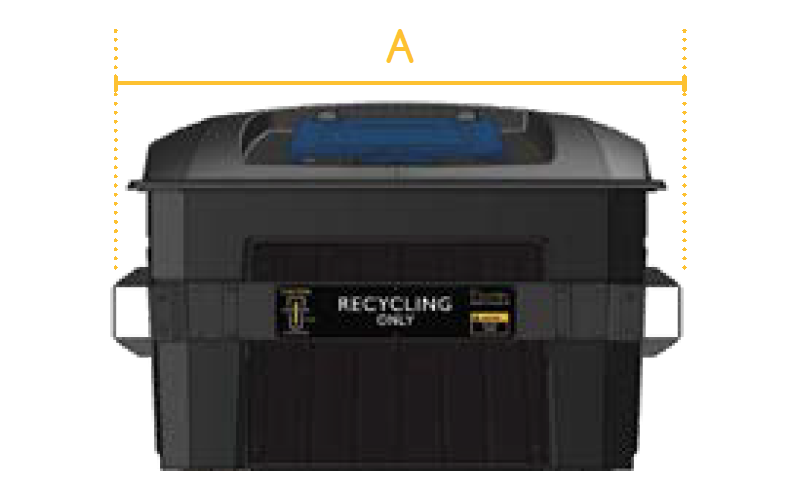

Width (A): 80 in. (203 cm)
Length (B): 70 in. (178 cm)
Height (C): 55 in. (140 cm)
Feed Height (D): 49 in. (124 cm)
Depth In-Ground (E): 62 in. (158 cm)
Ground sleeve height above finished grade. (F): 4 in. (10 cm)
Waste Feed Opening: 19 x 24 in. (48 x 61 cm)
Cardboard Feed Opening: 3.5 x 24 in. (9 x 61 cm)
Weight (Empty): 750 lbs (340 kg)
Configuration:
• Rectangular container above-ground;
• Round container in-­ground which can be rotated

Feed Doors:
• Two (2) per container (front & rear)
• Colour coded to indicate purpose (green, blue, grey, or black)
• Lockable feed doors

Locks: Two (2) automatic Gravity Latches on main Service Lid

Materials:
• Rigid roto-­molded premium virgin polyethylene ground sleeve
• Rigid roto-­molded premium virgin polyethylene bin
• Polyethylene vacuum formed (thermoformed)
• Service Door & Feed Doors with textured surface finish
• Yellow zinc plated steel frame with a Super durable sandtex powder paint
• Fastened aluminum anodized signage
• Polyethylene vacuum formed architectural panels

Other:
• Lifting structure conforms to standard Front Load waste trucks
• Manual Lid Strut on both feed doors
• Durable & fade resistant; non-warping lids and feed doors
• Secondary Containment In-Ground System
• Cardboard slot is covered and lockable
• Patented ground sleeve anchor system
• Protective black bumpers
• Bin is comprised of two (2) parts
• Architectural panels available in optional colours

Model: EB505
Capacity/Volume: 6.5 cu. yd. (5000 litres)
Capacity/Weight: 2600 lbs (1200 kg)
Width (A): 80 in. (203 cm)
Length (B): 70 in. (178 cm)
Height (C): 55 in. (140 cm)
Feed Height (D): 49 in. (124 cm)
Depth In-Ground (E): 62 in. (158 cm)
Ground sleeve height above finished grade. (F): 4 in. (10 cm)
Waste Feed Opening: 19 x 24 in. (48 x 61 cm)
Cardboard Feed Opening: 3.5 x 24 in. (9 x 61 cm)
Recyclables Feed Opening: 12 in (300 mm) diameter
Weight (Empty): 650 lbs (295 kg)
Configuration:
• Rectangular container above-ground;
• Round container in-­ground which can be rotated
Feed Doors:
• Two (2) per container (front & rear)
• Lockable feed doors
Locks:
• Two (2) automatic Gravity Latches on main Service Lid
Materials:
• Rigid roto-­molded premium virgin polyethylene ground sleeve
• Rigid roto-­molded premium virgin polyethylene bin
• Polyethylene vacuum formed (thermoformed) Service Door & Feed Doors with textured surface finish
• Yellow zinc plated steel frame with a Super durable sandtex powder paint
• Fastened aluminum signage
• Polyethylene vacuum formed architectural panels
Other:
• Lifting structure conforms to standard Front Load waste trucks
• Secondary Containment In-Ground System
• Cardboard slot is covered and lockable
• Patented ground sleeve anchor system
• Thermoformed polyethylene black or brown panels (optional)
• Coloured feed doors (optional)
• Manual Lid Strut on both feed doors (optional)

Model: EB260
Capacity/Volume: 4.0 cu. yd. (3000 litres)
Capacity/Weight: 2600 lbs (1200 kg)
Width (A): 80 in. (203 cm)
Length (B): 70 in. (178 cm)
Overall Height (C): 56.3 in. (143 cm)
Load Height (D): 49.4 in. (126 cm)
Waste Feed Opening: 19 x 24 in. (48 x 61 cm)
Organics Feed Opening: 19 x 24 in. (48 x 61 cm)
Cardboard Feed Opening: 3.5 x 24 in. (9 x 61 cm)
Recyclables Feed Opening: 12 in. (30 cm) Diameter
Weight (Empty): 650 lbs (295 kg)
Configuration:
• Rectangular above-ground container
Feed Doors:
• Two (2) lockable per container (front & rear)
• Feed door struts
Locks:
• Two (2) automatic Gravity Latches on main Service Door
Materials:
• Rigid roto-­molded premium virgin polyethylene bin
• Recycled black polyethylene vacuum formed (thermoformed) Service Door & Feed Doors with textured surface finish
• Yellow zinc plated steel frame with a Super durable sandtex powder coat finish
• Fastened aluminum signage (standard)
Other:
• Lifting structure conforms to standard Front Load garbage trucks
• Durable & fade resistant; non-warping lids and feed doors
•Thermoformed black or brown panels (optional)
• 100% Virgin polyethylene ...brown, green, blue, black, grey or yellow feed door (optional)
• Feed door lid struts (optional)
• Locator base (optional)

Model: EB130T
Capacity/Volume: 1300 litre (1.7 cubic yard)
Capacity/Weight: 1200 kg (2650 lbs)
Diameter (A): 1.0 m (40.5 in)
Height (B): 1.2 m (48.5 in)
Feed Height (C): 1.0 m (39.4 in)
Depth In-Ground (D): 1.5 m (60 in)
Standard Feed Opening: 28 cm x 30 cm (11 in x 12 in)
Configuration: Round semi-buried in-ground waste & recycling with vertical lift system (Crane lift)
Feed Door: Optional colours - Black, Blue, Brown; lockable
Lift frame: Quick lift system meets “Design of Below-the-Hook Lifting Devices” ASME BTH-1
Bag: Soft bag; soft bag with liquid retention tank; rigid container for organics
Framing: Available in Black, Dark Brown or Dark Grey
Liner: Ground sleeve features a Patented Anchor system
Signage: Standard text to indicate different types of materials: Garbage, cardboard, recycling, organics
Materials:
• Ground sleeve liner: Rigid rotomolded premium virgin Polyethylene 100% recyclable, UV stabilized, continuous sealed part, liquid tight
• Hardware: Galvanized steel, stainless steel or aluminum to ensure long life
• Lid: 100% recycled black Polyethylene thermoformed textured surface finish
• Door: 100% recycled black Polyethylene or coloured Polyethylene thermoformed textured surface finish
• Framing: 100% recycled plastic
• Signage: Premium outdoor aluminum
• Lift frame: Galvanized steel
• Bag: Polypropylene woven bag; polypropylene woven bag with Polyethylene liquid retention tank; Polyethylene rigid container

Model: EB500T
Capacity/Volume: 5000 litre (6.5 cubic yard)
Capacity/Weight: 1250 kg (2750 lbs)

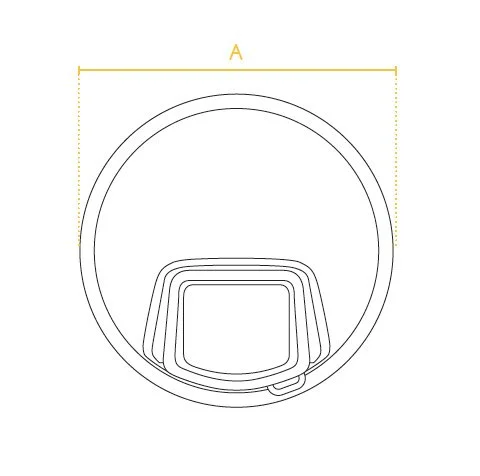

Diameter (A): 1.8 m (70.8 in)
Height (B): 1.2 m (48.5 in)
Feed Height (C): 1.0 m (39.4 in)
Depth In-Ground (D): 1.5 m (60 in)
Standard Feed Opening: 52 cm x 58 cm (20.5 in x 23 in)
Configuration: Round semi-buried in-ground waste & recycling with vertical lift system (Crane lift)
Feed Door: Optional colours - Black, Blue; lockable and door stay
Lift frame: Quick lift system meets “Design of Below-the-Hook Lifting Devices” ASME BTH-1
Bag: Soft bag; soft bag with liquid retention tank
Framing: Available in Black, Dark Brown or Dark Grey
Liner: Ground sleeve features a Patented Anchor system
Signage: Standard text to indicate different types of materials: Garbage, cardboard, recycling
Materials:
• Ground sleeve liner: Rigid rotomolded premium virgin Polyethylene 100% recyclable, UV stabilized, continuous sealed part, liquid tight
• Hardware: galvanized steel, stainless steel or aluminum to ensure long life
• Lid: 100% recycled black Polyethylene thermoformed textured surface finish
• Door: 100% recycled black Polyethylene or coloured Polyethylene thermoformed textured surface finish
• Framing: 100% recycled plastic
• Signage: Premium outdoor aluminum
• Lift frame: Galvanized steel
• Bag: Polypropylene woven bag with inner liner; polypropylene woven bag with Polyethylene liquid retention tank;
