Capacity/Volume: 6.5 cu. yd. (5000 litres)
Capacity/Weight: 2600 lbs (1200 kg)

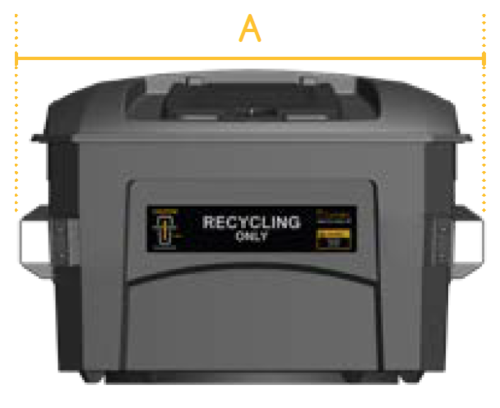

Width (A): 80 in. (203 cm)

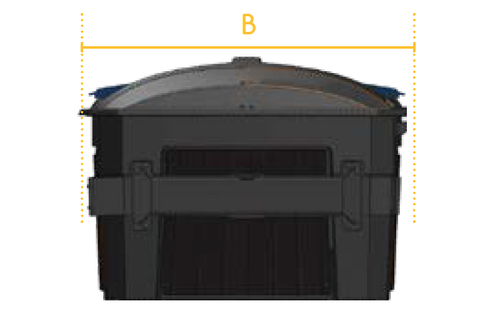

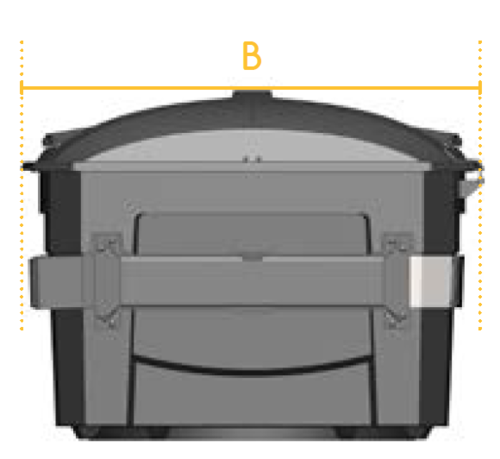

Length (B): 70 in. (178 cm)

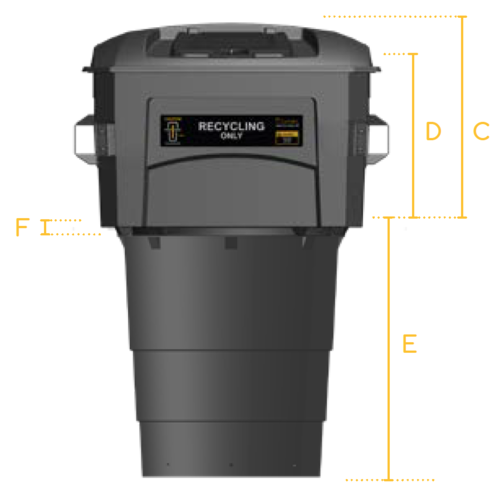

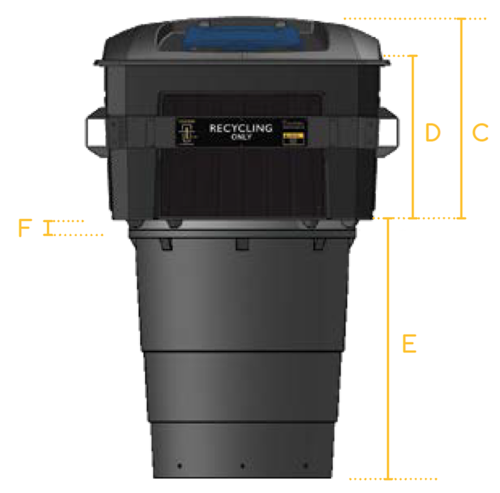

Height (C): 55 in. (140 cm)
Feed Height (D): 43 in. (109 cm)
Depth In-Ground (E): 62 in. (158 cm)
Ground sleeve height above finished grade. (F): 4 in. (10 cm)
Waste Feed Opening: 19 x 24 in. (48 x 61 cm)
Cardboard Feed Opening: 3.5 x 24 in. (9 x 61 cm)
Weight (Empty): 750 lbs (340 kg)

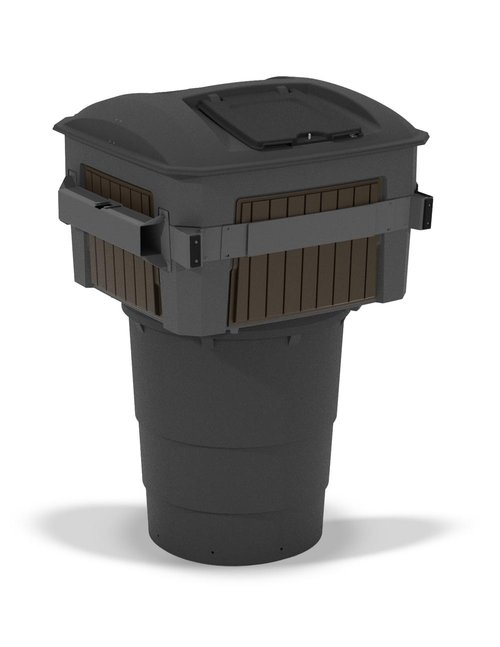

Configuration:
• Rectangular container above-ground;

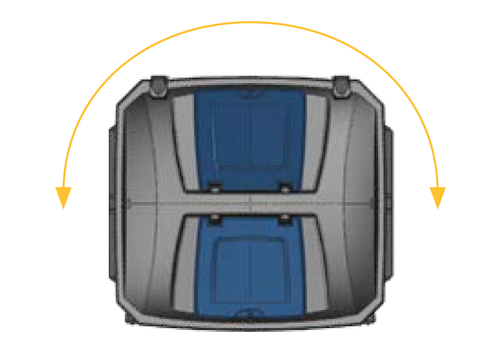

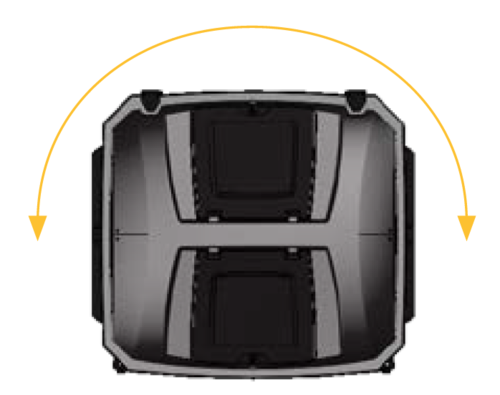

• Round container in-ground which can be rotated

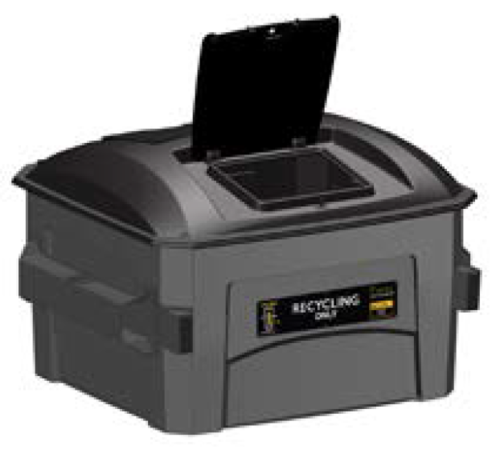

Feed Doors:
• Two (2) per container (front & rear)
• Colour coded to indicate purpose (green, blue, grey, or black)
• Lockable feed doors
Locks: Two (2) automatic Gravity Latches on main Service Lid
Materials:
• Rigid roto-molded premium virgin polyethylene ground sleeve
• Rigid roto-molded premium virgin polyethylene bin
• Polyethylene vacuum formed (thermoformed)
• Service Door & Feed Doors with textured surface finish
• Yellow zinc plated steel frame with a Super durable sandtex powder paint
• Fastened aluminum anodized signage
• Polyethylene vacuum formed architectural panels
Other:
• Lifting structure conforms to standard Front Load waste trucks
• Manual Lid Strut on both feed doors
• Durable & fade resistant; non-warping lids and feed doors
• Secondary Containment In-Ground System
• Cardboard slot is covered and lockable
• Patented ground sleeve anchor system
• Protective black bumpers
• Bin is comprised of two (2) parts
• Architectural panels available in optional colours
Capacity/Volume: 6.5 cu. yd. (5000 litres)
Capacity/Weight: 2600 lbs (1200 kg)

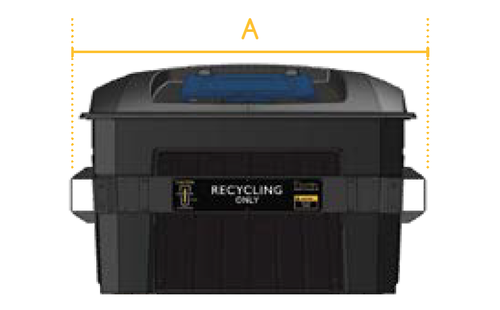

Width (A): 80 in. (203 cm)
Length (B): 70 in. (178 cm)
Height (C): 55 in. (140 cm)
Feed Height (D): 43 in. (109 cm)
Depth In-Ground (E): 62 in. (158 cm)
Ground sleeve height above finished grade. (F): 4 in. (10 cm)
Waste Feed Opening: 19 x 24 in. (48 x 61 cm)
Cardboard Feed Opening: 3.5 x 24 in. (9 x 61 cm)
Recyclables Feed Opening: 12 in (300 mm) diameter
Weight (Empty): 650 lbs (295 kg)
Configuration:
• Rectangular container above-ground;
• Round container in-ground which can be rotated
Feed Doors:
• Two (2) per container (front & rear)
• Lockable feed doors
Locks:
• Two (2) automatic Gravity Latches on main Service Lid
Materials:
• Rigid roto-molded premium virgin polyethylene ground sleeve
• Rigid roto-molded premium virgin polyethylene bin
• Polyethylene vacuum formed (thermoformed) Service Door & Feed Doors with textured surface finish
• Yellow zinc plated steel frame with a Super durable sandtex powder paint
• Fastened aluminum signage
• Polyethylene vacuum formed architectural panels
Other:
• Lifting structure conforms to standard Front Load waste trucks
• Secondary Containment In-Ground System
• Cardboard slot is covered and lockable
• Patented ground sleeve anchor system
• Thermoformed polyethylene black or brown panels (optional)
• Coloured feed doors (optional)
• Manual Lid Strut on both feed doors (optional)
